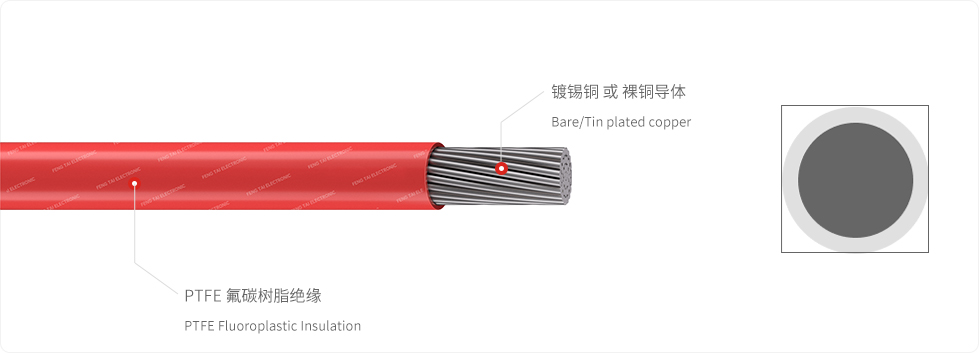

PTFE-UL

UL认证.svg

Overview

Rated Voltage

125V~ 600V

Rated Temperature

250℃ or 200℃ or 150℃ or 105℃

Lowest Temperature

-100℃

Insulation

PTFE

Color

White, Orange, Red, Yellow, Blue, Green, Brown or Black, etc

Conductor

Solid or Strands Copper Plated with Nickel (Option: Silver Plated Copper)

Characteristic

Excellent in High and Low Temp, Ageing, Corrosive Environment. VW-1 & FT1 Flame Rated, RoHS, UL Recognized AWM

Uses

Internal Wiring of Electrical and Mechanical Appliances

Product Model

Models

Rated Temperature

Rated Voltage

Insulation Thickness

Specsheet

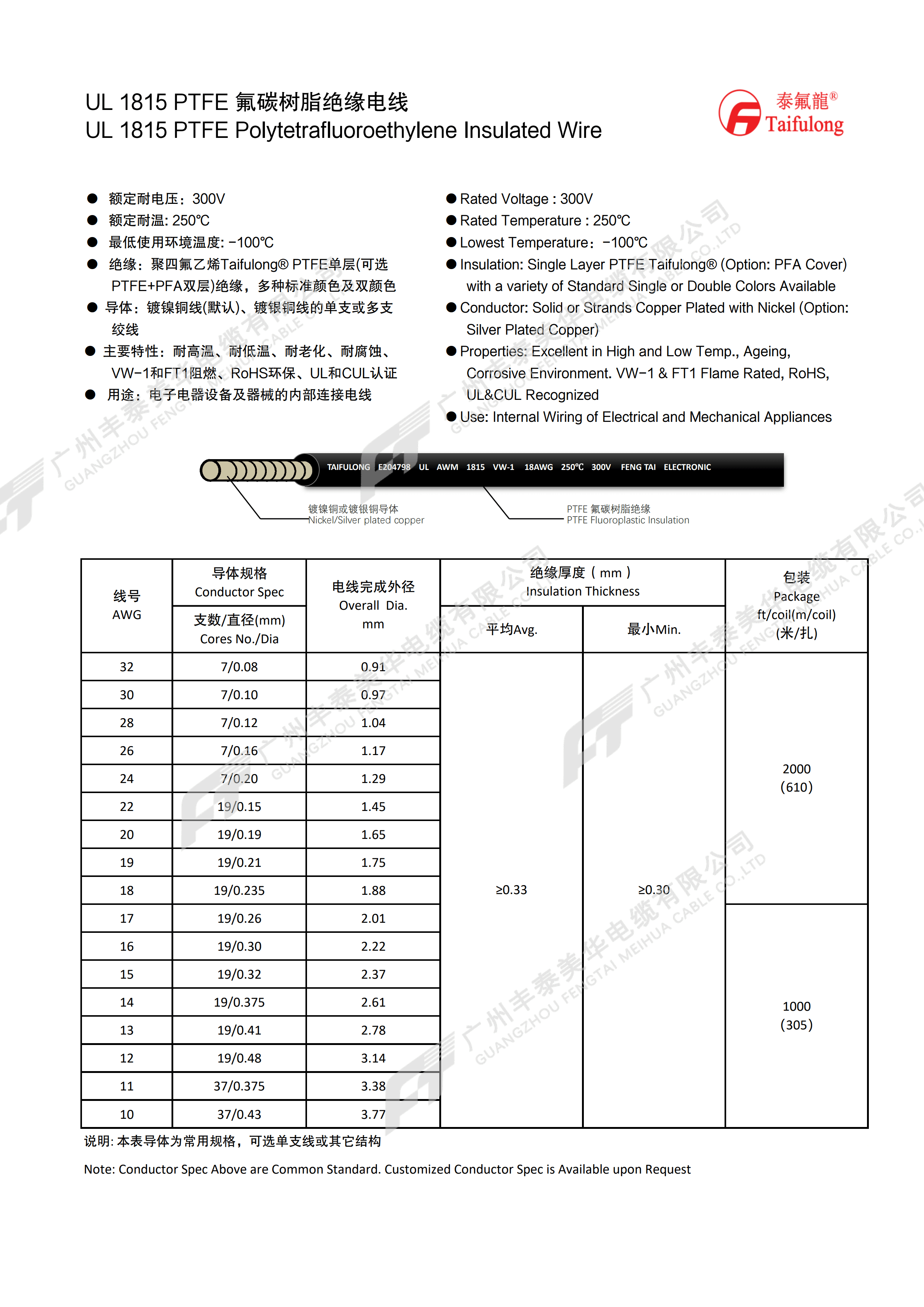

UL1815

250℃

300V

0.33

Download

UL1180

200℃

300V

0.33

Download

UL1164

150℃

300V

0.33

Download

UL10393

250℃

600V

0.33

Download

UL1213(300V)

105℃

300V

0.2

Download

UL1213(600V)

105℃

600V

0.26-0.30

Download

UL1199

200℃

600V

0.51-0.76

Download

UL5230

250℃

600V

0.51-0.76

Download

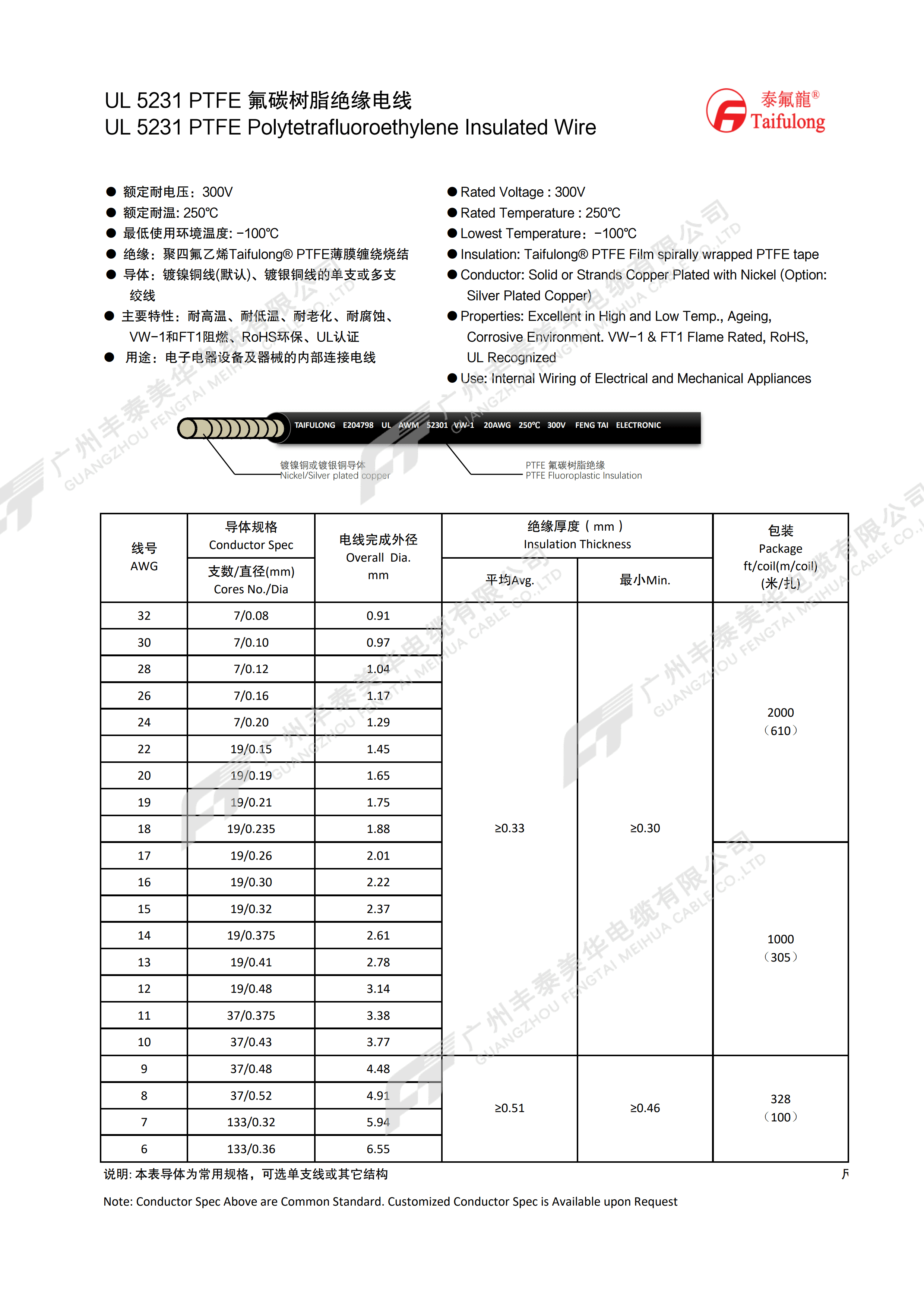

UL5231

250℃

300V

0.33-0.51

Download

UL5125

250℃

600V

0.76

Download

UL1577

200℃

300V

0.31

Download

UL1723

200℃

300V

0.26

Download

UL1371

105℃

150V

0.16-0.33

Download

UL1538

105℃

125V

0.16-0.33

Download

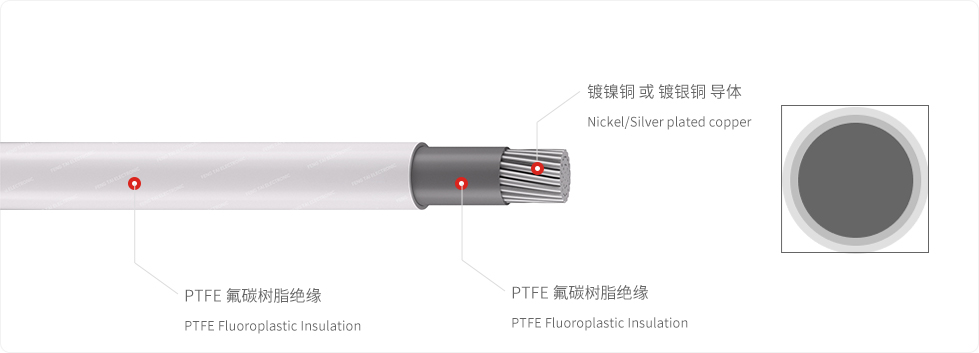

UL1815(双层)

250℃

300V

0.53

Download

UL1911

250℃

10-30KV-DC

-

Download

Frequently Asked Questions

  • ?

    What is a semi flexible RF coaxial cable?

    A

    The packaging of conventional wires is generally divided into 305 meters and 610 meters, while home decoration wires are divided into 100 meters and 50 meters. The outer diameter of wires with different diameters varies, so the number of meters in a circle will also be different. But wires with different lengths in a circle are only different in length, and their performance is completely the same. In addition to the circular meters of 305 meters and 610 meters, Fengtai can also customize the circular meters according to customer needs.

  • ?

    What are the performance differences of wires with different coil lengths?

    A

    The packaging of conventional wires is generally divided into 305 meters and 610 meters, while home decoration wires are divided into 100 meters and 50 meters. The outer diameter of wires with different diameters varies, so the number of meters in a circle will also be different. But wires with different lengths in a circle are only different in length, and their performance is completely the same. In addition to the circular meters of 305 meters and 610 meters, Fengtai can also customize the circular meters according to customer needs.

  • ?

    Why can't PTFE be tinned?

    A

    The packaging of conventional wires is generally divided into 305 meters and 610 meters, while home decoration wires are divided into 100 meters and 50 meters. The outer diameter of wires with different diameters varies, so the number of meters in a circle will also be different. But wires with different lengths in a circle are only different in length, and their performance is completely the same. In addition to the circular meters of 305 meters and 610 meters, Fengtai can also customize the circular meters according to customer needs.

  • ?

    Why is UL1213 temperature resistant to 105 ° C?

    A

    The packaging of conventional wires is generally divided into 305 meters and 610 meters, while home decoration wires are divided into 100 meters and 50 meters. The outer diameter of wires with different diameters varies, so the number of meters in a circle will also be different. But wires with different lengths in a circle are only different in length, and their performance is completely the same. In addition to the circular meters of 305 meters and 610 meters, Fengtai can also customize the circular meters according to customer needs.

  • ?

    UL conductor resistance parameters

    A

    The packaging of conventional wires is generally divided into 305 meters and 610 meters, while home decoration wires are divided into 100 meters and 50 meters. The outer diameter of wires with different diameters varies, so the number of meters in a circle will also be different. But wires with different lengths in a circle are only different in length, and their performance is completely the same. In addition to the circular meters of 305 meters and 610 meters, Fengtai can also customize the circular meters according to customer needs.
