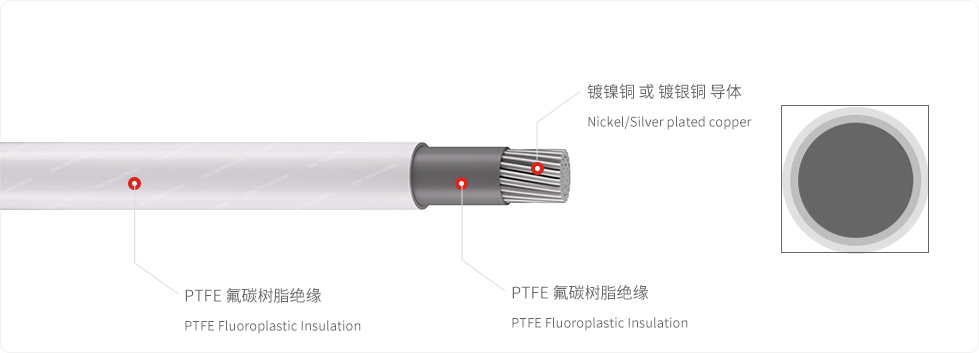

Structure

Specifications

Structure

Specifications

Would you like to learn more UL1911 relevant information?

Click to Inquire

UL1911

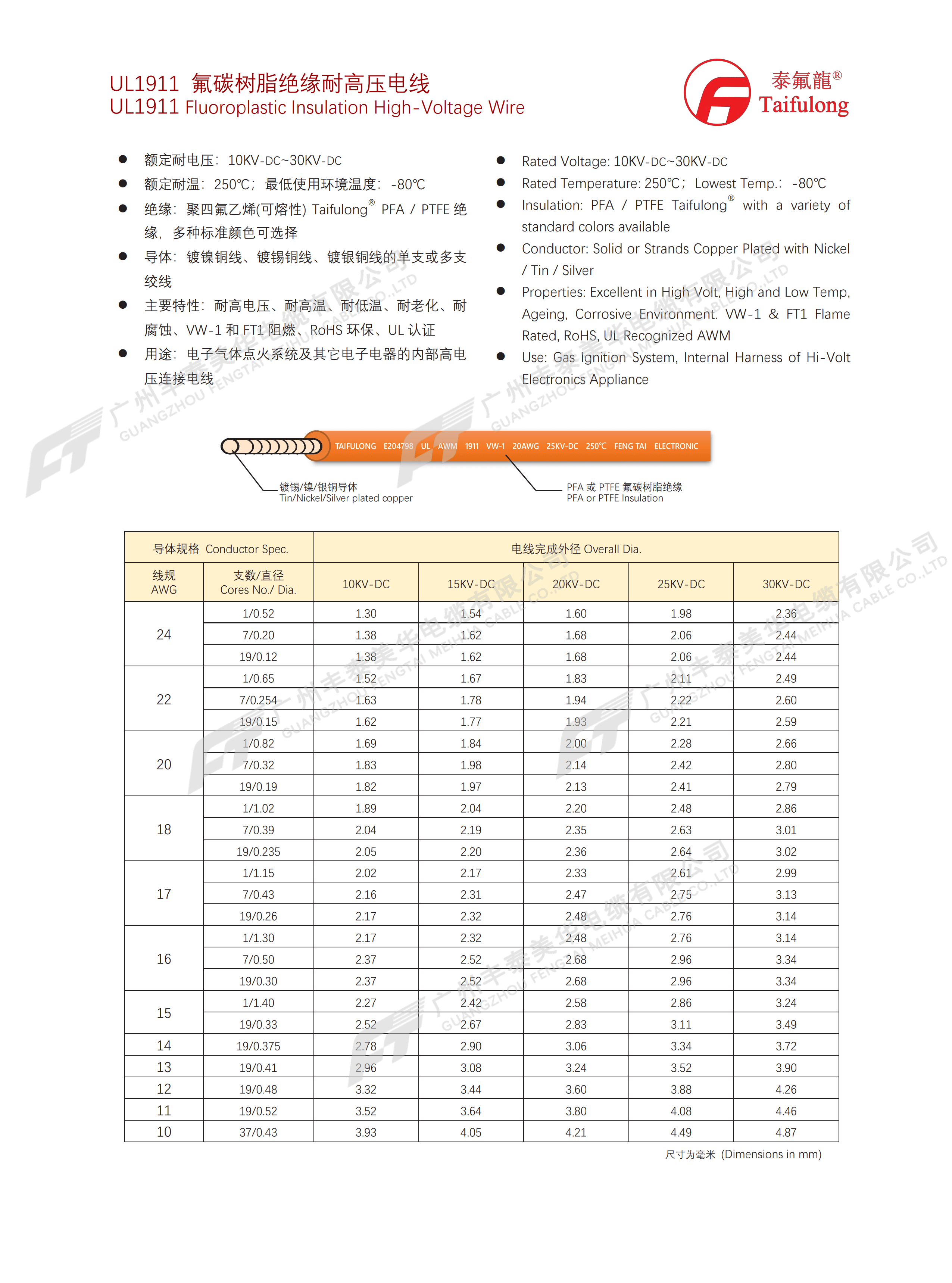

Datasheet

Standards

Insulation

PTFE

Rated Temp.

250℃

Rated Voltage

10KV-DC ,20KV-DC ,30KV-DC

Construction

Single-layer insulation

Jacket

PTFE

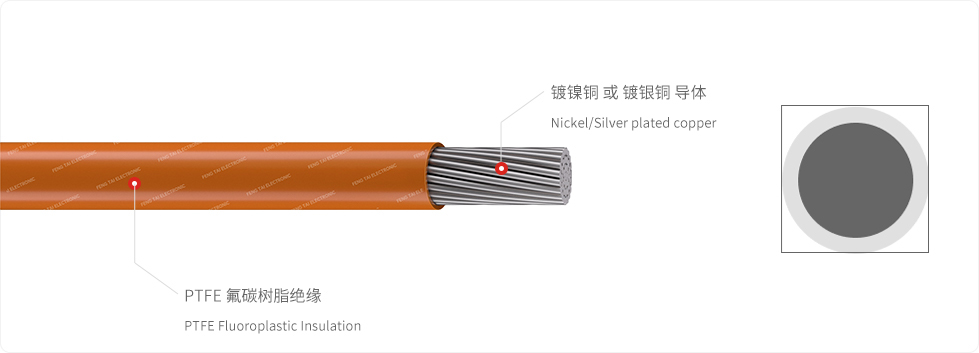

Structure

Specifications

Conductor Spec.		Overall Dia. mm					Package ft/coil (m/coil)
AWG	Cores No./Dia (mm)	10KV-DC	15KV-DC	20KV-DC	25KV-DC	30KV-DC
24	1/0.52	1.38	1.52	1.80	2.06	2.46	1000 （305）
	7/0.20	1.46	1.60	1.88	2.14	2.54
	19/0.12	1.46	1.60	1.88	2.14	2.54
22	1/0.65	1.51	1.65	1.93	2.19	2.59
	7/0.254	1.62	1.76	2.04	2.30	2.70
	19/0.15	1.61	1.75	2.03	2.29	2.69
20	1/0.82	1.68	1.82	2.10	2.36	2.76
	7/0.32	1.82	1.96	2.24	2.50	2.90
	19/0.19	1.81	1.95	2.23	2.49	2.89
18	1/1.02	1.88	2.02	2.30	2.56	2.96
	7/0.39	2.03	2.17	2.45	2.71	3.11
	19/0.235	2.04	2.18	2.46	2.72	3.12
17	1/1.15	2.01	2.15	2.43	2.69	3.09	328 （100）
	7/0.43	2.15	2.29	2.57	2.83	3.23
	19/0.26	2.16	2.30	2.58	2.84	3.24
16	1/1.30	2.16	2.30	2.58	2.84	3.24
	7/0.50	2.36	2.50	2.78	3.04	3.44
	19/0.30	2.36	2.50	2.78	3.04	3.44
15	1/1.40	2.26	2.40	2.68	2.94	3.34
	19/0.32	2.46	2.60	2.88	3.14	3.54
14	19/0.375	2.74	2.88	3.16	3.42	3.82
13	19/0.41	2.92	3.06	3.34	3.60	4.00
12	19/0.48	3.28	3.42	3.70	3.96	4.36
11	19/0.52	3.48	3.62	3.90	4.16	4.56
10	37/0.43	3.89	4.03	4.31	4.57	4.97
(Dimensions in mm)
