50Ω Solid-Core Coaxial Cable

Suitable for signal transmission in ultra-high frequency (UHF) communication, mobile phone base station RF antenna systems, radar, navigation, aerospace, IT equipment, rail transit, and other high-frequency electronic devices.

Overview

Conductor

Silver Plated Copper or Silver-Plated Copper Clad Steel

Dielectric

Solid PTFE Fluoropolymer in Translucent Color

Shield

Tin cover around Tin-Plated Pure Copper Braid

Jacket

FEP Fluoropolymer or LSZH, Color: Red, Blue, Brown, Grey, White or Black (Other colors per Request)

Characteristic:

High Operating Frequency, Low Attenuation, Small Standing Wave, Mini-sized, Bendable, Good Resistant to High Temp/Aging, Flame Retarding, RoHS Compliant

Use

UHF Telecom, RF Antenna for Mobile Infrastructure, Radar, Navigation, Aerospace, IT Equipment, Railway and other HF Electronic Equipment

Product model

Series	Models	Conductor Structure	Jacket Material	Outer Diameter	Specsheet
047	047-50	1/0.30	无	1.22	Download
	047-50F	1/0.30	FEP	1.62	Download
	047-50Z	1/0.30	LSZH	1.78	Download
086	086-50	1/0.52	无	2.15	Download
	086-50F	1/0.52	FEP	2.5	Download
	086-50Z	1/0.52	LSZH	2.65	Download
141	141-50	1/0.92	无	3.5	Download
	141-50F	1/0.92	FEP	4.15	Download
	141-50Z	1/0.92	LSZH	4.3	Download
160	160-50	1/1.08	无	4.1	Download
	160-50F	1/1.08	FEP	4.7	Download
	160-50Z	1/1.08	LSZH	4.9	Download
250	250-50	1/1.65	无	6.05	Download
	250-50F	1/1.65	FEP	7	Download
	250-50Z	1/1.65	LSZH	7.2	Download
RG系列	RG405	1/0.52	FEP	2.55	Download
	RG402	1/0.93	FEP	4.2	Download
	RG401	1/1.65	FEP	7	Download

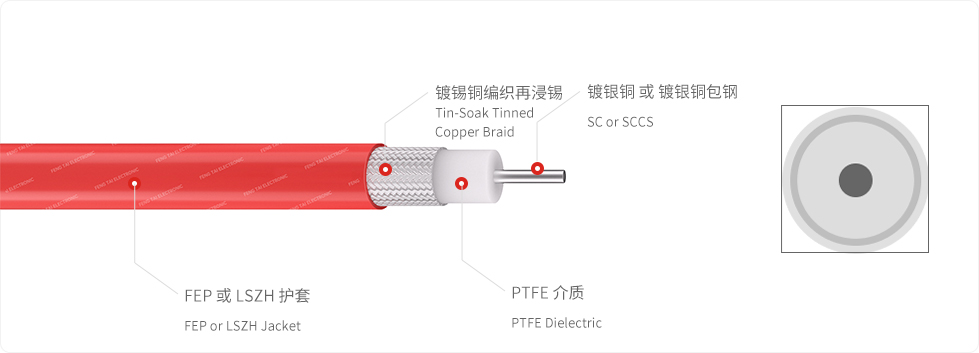

Cable Structure

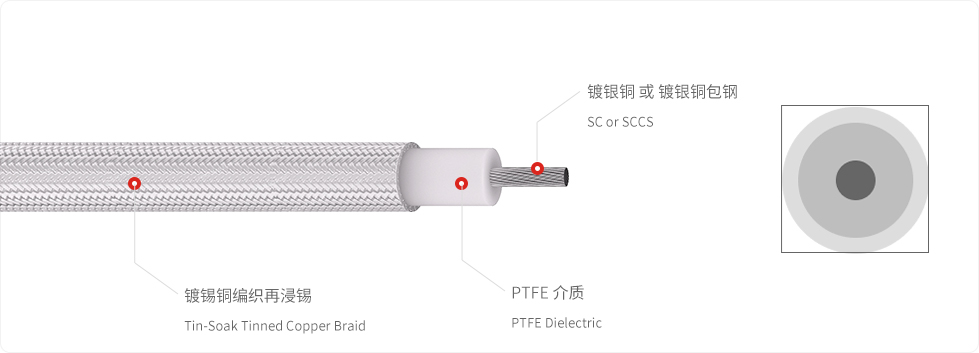

Single layer insulation Unsheathed

Frequently Asked Questions

?
What is a semi flexible RF coaxial cable?

A
The packaging of conventional wires is generally divided into 305 meters and 610 meters, while home decoration wires are divided into 100 meters and 50 meters. The outer diameter of wires with different diameters varies, so the number of meters in a circle will also be different. But wires with different lengths in a circle are only different in length, and their performance is completely the same. In addition to the circular meters of 305 meters and 610 meters, Fengtai can also customize the circular meters according to customer needs.
?
What are the performance differences of wires with different coil lengths?

A
The packaging of conventional wires is generally divided into 305 meters and 610 meters, while home decoration wires are divided into 100 meters and 50 meters. The outer diameter of wires with different diameters varies, so the number of meters in a circle will also be different. But wires with different lengths in a circle are only different in length, and their performance is completely the same. In addition to the circular meters of 305 meters and 610 meters, Fengtai can also customize the circular meters according to customer needs.
?
Why can't PTFE be tinned?

A
The packaging of conventional wires is generally divided into 305 meters and 610 meters, while home decoration wires are divided into 100 meters and 50 meters. The outer diameter of wires with different diameters varies, so the number of meters in a circle will also be different. But wires with different lengths in a circle are only different in length, and their performance is completely the same. In addition to the circular meters of 305 meters and 610 meters, Fengtai can also customize the circular meters according to customer needs.
?
Why is UL1213 temperature resistant to 105 ° C?

A
The packaging of conventional wires is generally divided into 305 meters and 610 meters, while home decoration wires are divided into 100 meters and 50 meters. The outer diameter of wires with different diameters varies, so the number of meters in a circle will also be different. But wires with different lengths in a circle are only different in length, and their performance is completely the same. In addition to the circular meters of 305 meters and 610 meters, Fengtai can also customize the circular meters according to customer needs.
?
UL conductor resistance parameters

A
The packaging of conventional wires is generally divided into 305 meters and 610 meters, while home decoration wires are divided into 100 meters and 50 meters. The outer diameter of wires with different diameters varies, so the number of meters in a circle will also be different. But wires with different lengths in a circle are only different in length, and their performance is completely the same. In addition to the circular meters of 305 meters and 610 meters, Fengtai can also customize the circular meters according to customer needs.
