086-50F

Datasheet

E-Communication：HSCFF-50-2

National Standards：50-086-11

Cable Type

Semi Flex

Dielectric Type

Solid

Dielectric Material

PTFE

Impedance

50Ω

Jacket Material

FEP

Shield Construction

Single Braid

Shield Material

Tinned Copper

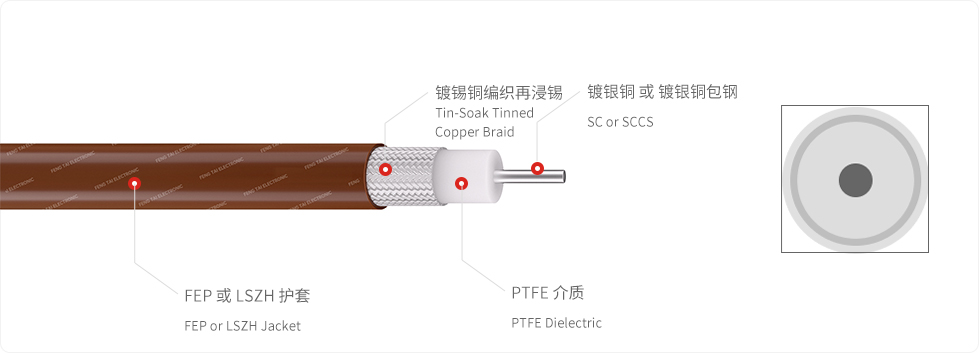

Structure

Style Spec.

Style Spec.	Material	Nominal Thick.	Dia.(mm)
Conductor	SC	----	0.52±0.02
Conductor	SCCS	----	0.52±0.02
Dielectric	PTFE	----	1.63±0.04
Braid Layer	TTCB	----	2.15±0.10
Jacket (OD)	N/A	----	2.15±0.10
	FEP	0.16	2.50± 0.10
	LSZH	0.24	2.65± 0.10

*TTCB: Tin-Soak Tinned Copper Braid; SC: Silver-Coated Copper; SCCS: Silver-Coated Copper Clad Steel

Electrical Performance

Impedance	Ω	50±2	Rated Voltage	V-DC	1500
Capacitance	pF/m	95	Rated Temperature	FEP -55~+150 ℃ LSZH -40~+85 ℃
VoP	％	70.8	(20℃) SC Conductor Resistance	Ω/km	≤93.35
Latency	ns/m	4.7	(20℃) SC Conductor Resistance	Ω/km	≤93.35
Phase Diff.	°	1440±4	(20℃) SCCS Conductor Resistance	Ω/km	≤235.25
Cut-Off Freq	GHz	61	(20℃) SCCS Conductor Resistance	Ω/km	≤235.25
Attenuation	dB	≥ 100	(20℃) Insulation Resistivity	MΩ.Km	≥15000

Return Loss And VSWR

Frequency (MHz)
Return Loss

Frequency (MHz)
VSWR
790~2170
≥26
0~3000
≤1.10
2300~2700
≥24
3000~6000
≤1.22
3300~3400
≥22

5700-5900
≥20
Attenuation Parameter (@20°C) dB/m

Frequency (MHz)
Maximum Attenuation (dB/m)
100
0.22
450
0.48
800
0.65
1000
0.74
1800
1.01
2000
1.07
2200
1.12
2400
1.18
3000
1.33
3800
1.51
6000
1.96

Mechanical Properties

Single Bend Radius		mm	6
Repeat Bend Radius		mm	30
SC Conductor	Tensile Strength	MPa	≥196
SC Conductor	Elongation at Break	％	----
SCCS Conductor	Tensile Strength	MPa	≥758
SCCS Conductor	Elongation at Break	％	≥1
FEP Jacket	Tensile Strength	MPa	≥ 19
FEP Jacket	Elongation at Break	％	≥ 300
LSZH Jacket	Tensile Strength	MPa	≥ 10
LSZH Jacket	Elongation at Break	％	≥ 125

Flame Ratings and Environmental Requirements

Flame Ratings
IEC60332-1-2
Insulating and Jacket
Enviro. Requirements
RoHS、REACH
