FT03BYBF4-5158

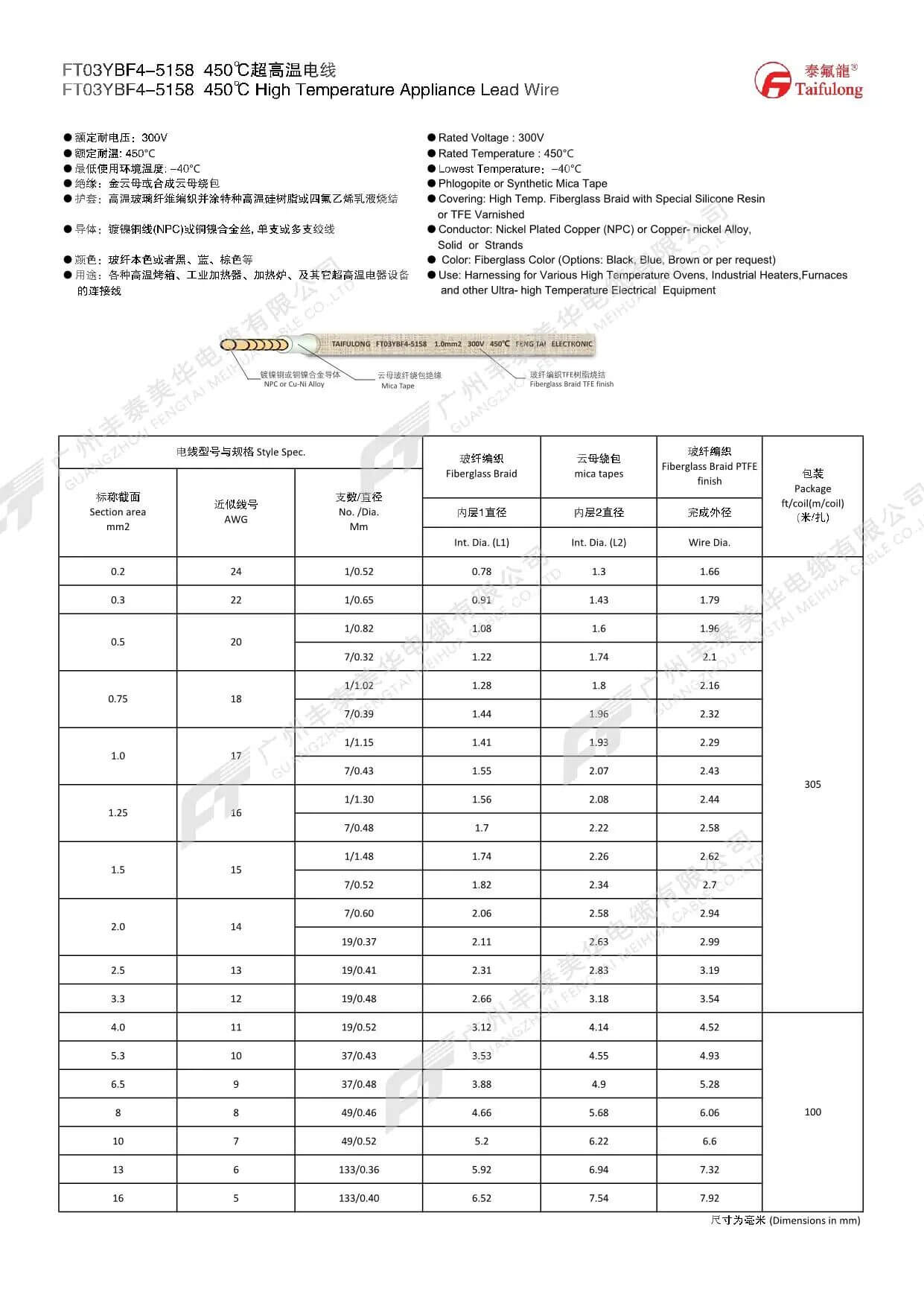

Datasheet

Standards

Extreme Temp. Appliance Lead Wire

Insulation

Mica Tape

Rated Temp.

450℃

Rated Voltage

300V

Inul. Thickness

1.3-7.54

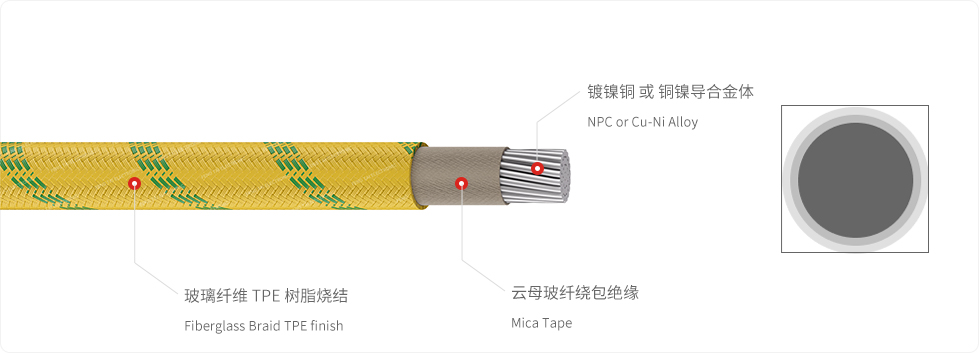

Construction

Double-layer insulation

Jacket

FKM ,Fiberglass Braid TFE finish

Structure

Specifications

Style spec.			FT03YBF4-5383（350℃）		Packageft/coil (m/coil)
Section area mm2	AWG	No./Dia Mm	mica tapes	Fiberglass Braid PTFE finish
Section area mm2	AWG	No./Dia Mm	Int. Dia.	Wire Dia.
0.2	24	1/0.52	1.40	1.66	305
0.3	22	1/0.65	1.53	1.79
0.5	20	1/0.82	1.70	1.96
0.5	20	7/0.32	1.84	2.10
0.75	18	1/1.02	1.90	2.16
0.75	18	7/0.39	2.06	2.32
1.0	17	1/1.15	2.03	2.29
1.0	17	7/0.43	2.17	2.43
1.25	16	1/1.30	2.18	2.44
1.25	16	7/0.48	2.32	2.58
1.5	15	1/1.48	2.36	2.62
1.5	15	7/0.52	2.44	2.70
2.0	14	7/0.60	2.68	2.94
2.0	14	19/0.37	2.73	2.99
2.5	13	19/0.41	2.93	3.19
3.3	12	19/0.48	3.28	3.54
4.0	11	19/0.52	3.62	4.14	100
5.3	10	37/0.43	4.03	4.55
6.5	9	37/0.48	4.38	4.90
8	8	49/0.46	5.16	5.68
10	7	49/0.52	5.70	6.22
13	6	133/0.36	6.42	6.94
16	5	133/0.40	7.02	7.54
(Dimensions in mm)
