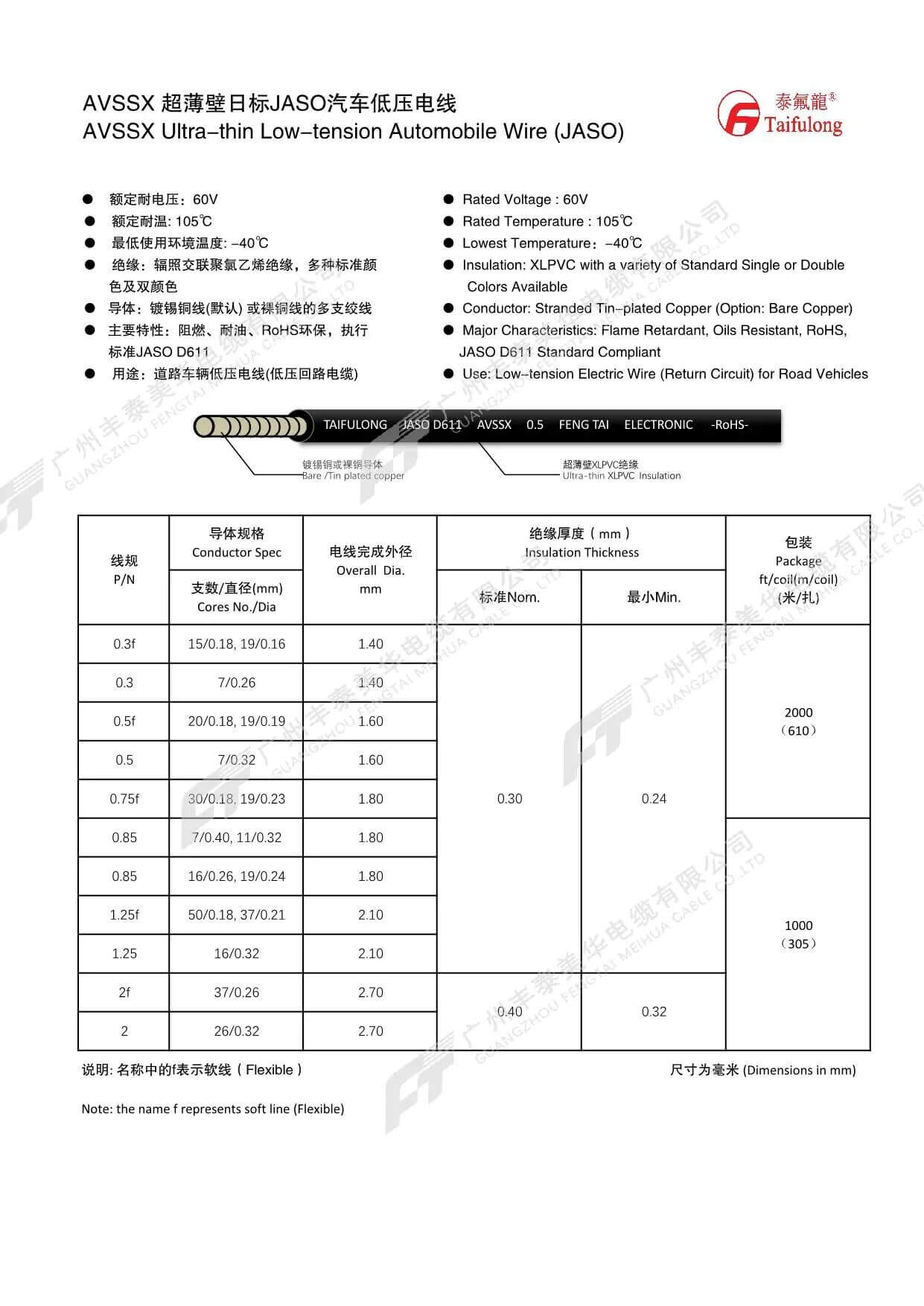

AVSSX

Datasheet

Standards

Low-Voltage Automobile Wire

Insulation

XLPVC

Rated Temp.

105℃

Rated Voltage

60V

Inul. Thickness

0.3-0.4

Construction

Single-layer insulation

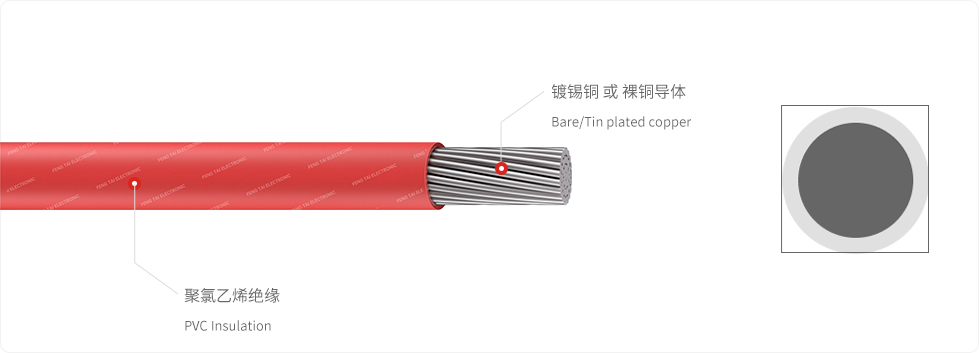

Structure

Specifications

P/N (Area) mm2	Conductor Spec.	Overall Dia. mm	Insulation Thickness（mm）		Package ft/coil (m/coil)
	Cores No./Dia (mm)		Nom.	Min.
0.3f	15/0.18, 19/0.16	1.40	0.30	0.24	500
0.3	7/0.26
0.5f	20/0.18, 19/0.19	1.60
0.5	7/0.32
0.75f	30/0.18, 19/0.23	1.80
0.85	7/0.40, 11/0.32
0.85	16/0.26, 19/0.24
1.25f	50/0.18, 37/0.21	2.10
1.25	16/0.32
2f	37/0.26	2.70	0.40	0.32	300
2	26/0.32
Note: the name f represents soft line (Flexible)				(Dimensions in mm)
