PRODUCT

250-50PZ

Structure

Style Spec.

Structure

Style Spec.

Would you like to learn more 250-50PZ relevant information?

Click to Inquire

250-50PZ

Datasheet

E-Communication：HSCPYZ-50-5

National Standards：50-250-1P3

Cable Type

Semi Flex

Dielectric Type

Microporous

Dielectric Material

PTFE

Impedance

50Ω

Jacket Material

LSZH

Shield Construction

Single Braid

Shield Material

Tinned Copper

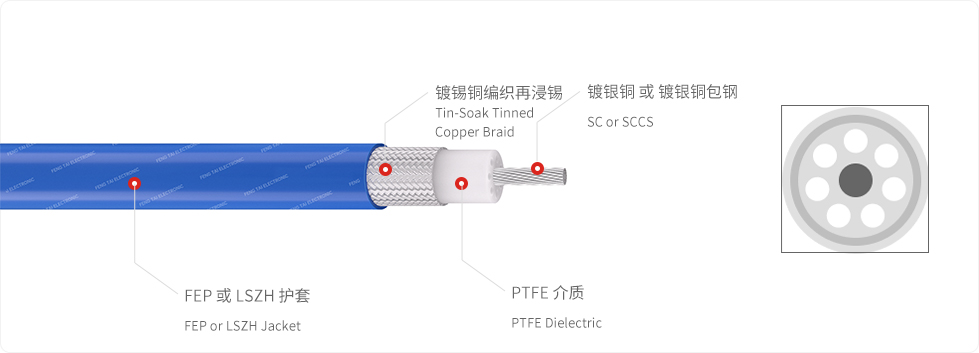

Structure

Style Spec.

Style Spec.

Style Spec.
Material
Nominal Thick.
Dia.(mm)
Conductor
SC
----
1.67±0.03
SCCS
----
1.67±0.03
Dielectric
PTFE
----
4.80±0.15
Braid Layer
Copper Foil
+
TTCB
----
5.60±0.15
Jacket
(OD)
FEP
0.20
6.25± 0.15
LSZH
0.25
6.45± 0.20
*TTCB: Tin-Soak Tinned Copper Braid; SC: Silver-Coated Copper; SCCS: Silver-Coated Copper Clad Steel

Electrical Performance

Impedance	Ω	50±2	Rated Voltage	V-DC	1500
Capacitance	pF/m	83.0	Rated Temperature	FEP -55~+150 ℃ LSZH -40~+85 ℃
VoP	％	77.3	SC Conductor Resistance (20℃)	Ω/km	≤8.78
Latency	ns/m	4.7	SC Conductor Resistance (20℃)	Ω/km	≤8.78
Phase Diff.	°	1440±10	SCCS Conductor Resistance (20℃)	Ω/km	≤22.13
Cut-Off Freq	GHz	21	SCCS Conductor Resistance (20℃)	Ω/km	≤22.13
Attenuation	dB	≥ 100	Insulation Resistivity (20℃)	MΩ.Km	≥5000
IP3	dBm	≤-160	Insulation Resistivity (20℃)	MΩ.Km	≥5000

Return Loss And VSWR

Frequency(MHz)
Return Loss

Frequency(MHz)
VSWR
100~1000
≥26.5
0~3000
≤1.10
1000~3000
≥24.0
3000~6000
≤1.22
3000~6000
≥20.0
Attenuation Parameter (@20°C) dB/m

Frequency(MHz)
Maximum Attenuation(dB/m)
100
0.09
450
0.17
800
0.22
1000
0.25
1800
0.35
2000
0.37
2200
0.39
2400
0.41
3000
0.47
3800
0.54
5000
0.64
6000
0.72

Mechanical Properties

Single Bend Radius		mm	40
Repeat Bend Radius		mm	200
SC Conductor	Tensile Strength	MPa	≥196
SC Conductor	Elongation at Break	％	≥0.5
SCCS Conductor	Tensile Strength	MPa	≥758
SCCS Conductor	Elongation at Break	％	≥1
FEP Jacket	Tensile Strength	MPa	≥ 19
FEP Jacket	Elongation at Break	％	≥ 300
LSZH Jacket	Tensile Strength	MPa	≥ 10
LSZH Jacket	Elongation at Break	％	≥ 125

Flame Ratings and Environmental Requirements

Flame Ratings
IEC60332-1-2
Insulating and Jacket
Enviro. Requirements
RoHS、REACH

WHY CHOOSE FENGTAI?

EXPLORE OUR ADVANTAGES

Reliable and Scalable Supply

50,000 Rolls in Stock

2 Million Meters Daily Output

Global Logistics Network

Advanced Cable Engineering

Dedicated Support Model

Optimized Stability

Long-Term Partnership Assurance

Customer Assurance

107 UL-Certified Products

1,000 m² Laboratory

International R&D Team

UHF/RF Coaxial Cables

Fluorolymer Wires

Specialty Wire & Cables

Find Cables by certification/industry standard

Recognized by Honeywell (Top 5 Globally)

Proven in a World Record Project

Built on Continuous Investment

Recommended

Other Options

What do you need to look for?

250-50PZ

Structure

Style Spec.

WHY CHOOSE FENGTAI?

Reliable and Scalable Supply

Advanced Cable Engineering

Customer Assurance

We value your privacy

Telephone

Style Spec.	Material	Nominal Thick.	Dia.(mm)
Conductor	SC	----	1.67±0.03
Conductor	SCCS	----	1.67±0.03
Dielectric	PTFE	----	4.80±0.15
Braid Layer	Copper Foil + TTCB	----	5.60±0.15
Jacket (OD)	FEP	0.20	6.25± 0.15
Jacket (OD)	LSZH	0.25	6.45± 0.20

Frequency(MHz)	Return Loss	Frequency(MHz)	VSWR
100~1000	≥26.5	0~3000	≤1.10
1000~3000	≥24.0	3000~6000	≤1.22
3000~6000	≥20.0

Frequency(MHz)	Maximum Attenuation(dB/m)
100	0.09
450	0.17
800	0.22
1000	0.25
1800	0.35
2000	0.37
2200	0.39
2400	0.41
3000	0.47
3800	0.54
5000	0.64
6000	0.72

Flame Ratings	IEC60332-1-2	Insulating and Jacket
Enviro. Requirements	RoHS、REACH	Insulating and Jacket
