SFF-50-7 TRI

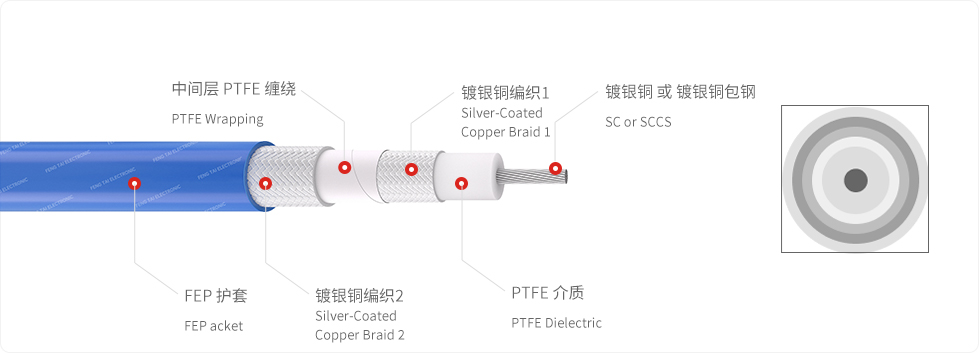

Structure

Specifications

Structure

Specifications

Would you like to learn more SFF-50-7 TRI relevant information?

Click to Inquire

SFF-50-7 TRI

Datasheet

Cable Type

Flexible UHF(RF)

Dielectric Type

Solid

Dielectric Material

PTFE

Impedance

50Ω

Jacket Material

FEP

Shield Construction

Double Braid with Wrapped Layer

Shield Material

Silver-Plated Copper

Structure

Specifications

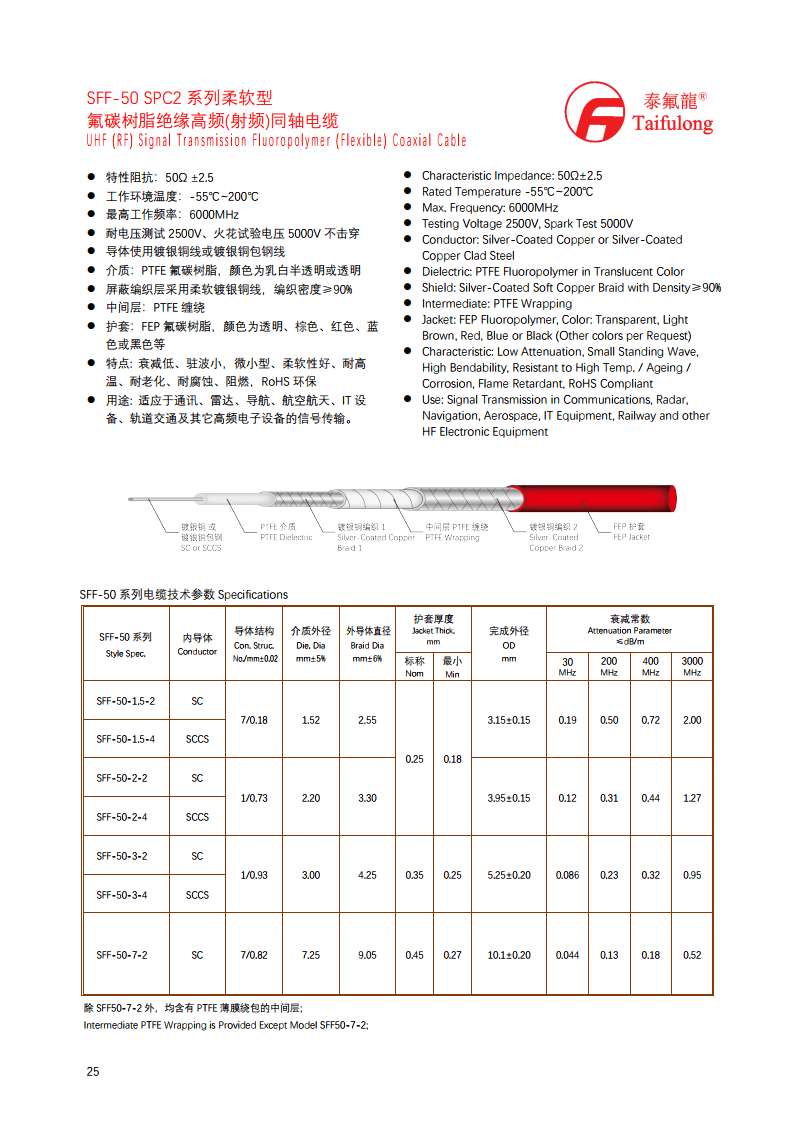

SFF-50 Specifications

SFF-50

Style Spec.

Conductor

Con. Struc.

No./mm±0.02

Die. Dia

mm±5%

Braid Dia

mm±6%

Jacket Thick.

Attenuation Parameter

≤dB/m

Nom

Min

MHz

200

MHz

400

MHz

3000

MHz

SFF-50-7-2

7/0.82

7.25

9.05

0.45

0.27

10.1±0.20

0.044

0.13

0.18

0.52
