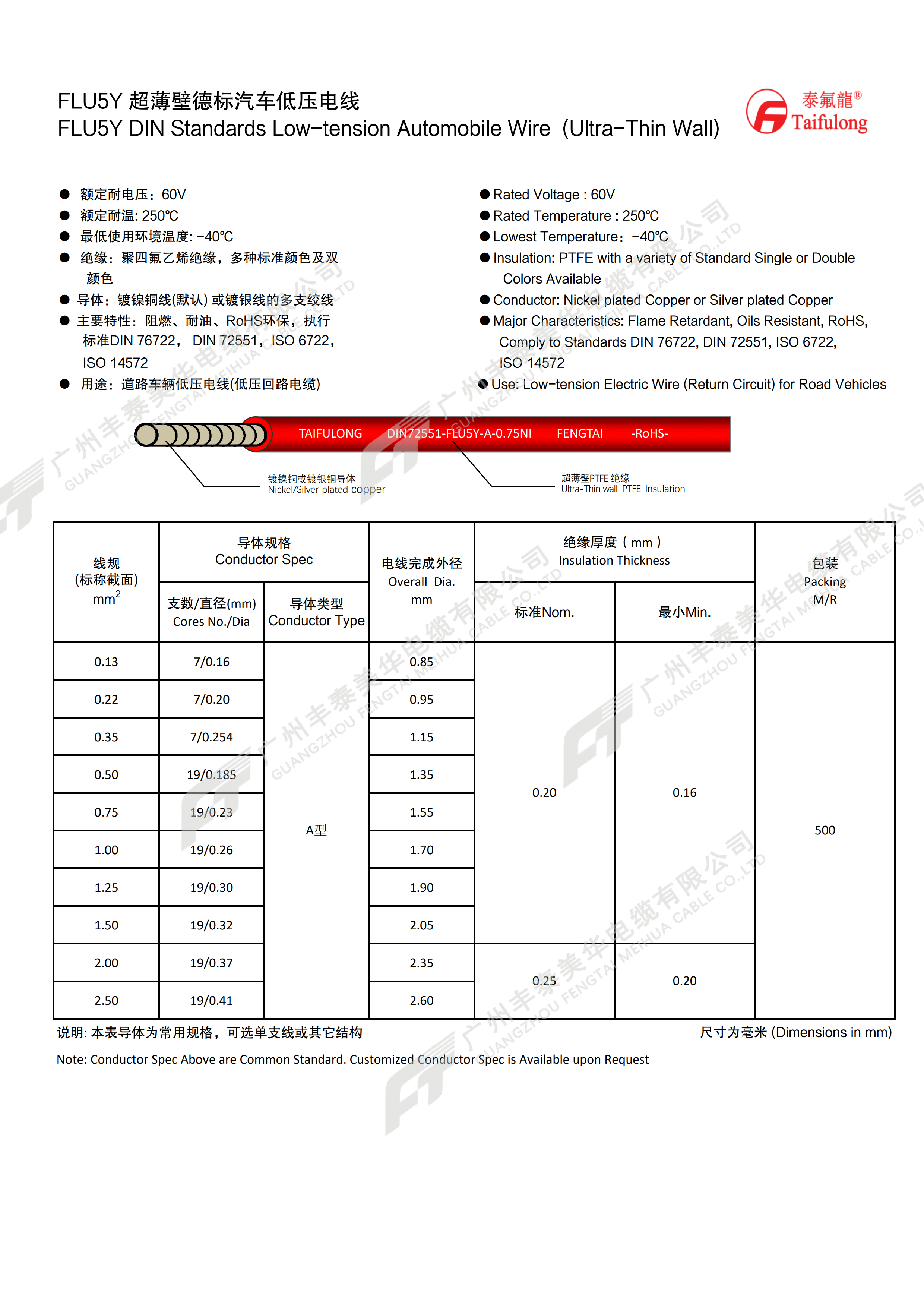

FLU5Y

Datasheet

Standards

Low-Voltage Automobile Wire

Insulation

PTFE

Rated Temp.

250℃

Rated Voltage

60V

Inul. Thickness

0.2-0.25

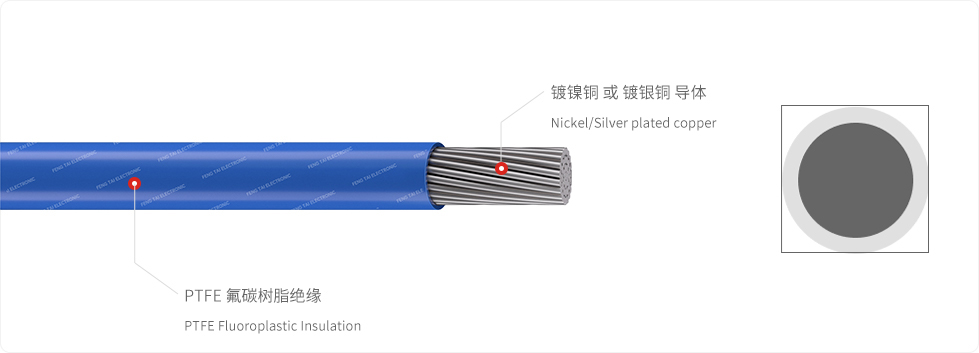

Construction

Single-layer insulation

Structure

Specifications

Style Spec. mm2	Style Spec.		OD mm	Insulation Thickness（mm）		Package ft/coil (m/coil)
Style Spec. mm2	Cores No./ Dia.(mm)	Conductor Type	OD mm	Nom.	Min.	Package ft/coil (m/coil)
0.13	7/0.16	A	0.85	0.20	0.16	500
0.22	7/0.20		0.95
0.35	7/0.254		1.15
0.50	19/0.185		1.35
0.75	19/0.23		1.55
1.00	19/0.26		1.70
1.25	19/0.30		1.90
1.50	19/0.32		2.05
2.00	19/0.37		2.35	0.25	0.20
2.50	19/0.41		2.60	0.25	0.20
Note: Conductor Spec Above are Common Standard. Customized Conductor Spec is Available upon Request						(Dimensions in mm)
