Mic-Rf 1.37L

Datasheet

Cable Type

Flexible UHF(RF)

Dielectric Type

Solid

Dielectric Material

FEP ,PFA

Impedance

50Ω

Jacket Material

FEP

Shield Construction

Foil + Single Braid

Shield Material

Tinned Copper Spiral

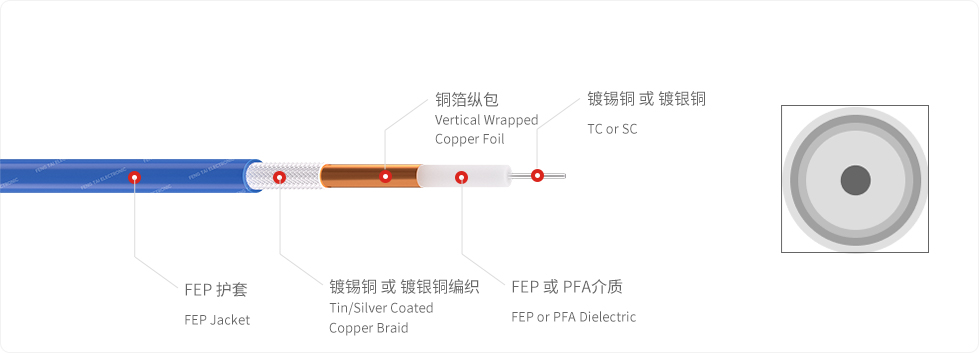

Structure

Specifications

Mic-RF Specifications

Style Spec.

Conductor

Con. Struc

No./mm

Dielectric

Die. Dia

Braid Struc.

Braid

Braid Dia

屏蔽层

单支导体直径

mm*

Jacket Thick.

(Nom) mm

mm±0.05

Mic-RF 1.32L

SC/TC

7/0.08

FEP

0.68

SC/TC

1.04

0.06

0.14

1.32

SC: Silver-Coated Copper;
TC: Tin-Coated Copper;
*: Braid – Single Conductor Diameter
B: Braiding;
CF: Copper Foil
W: Wrapping
