Mic-Rf 0.81L

Datasheet

Cable Type

Flexible UHF(RF)

Dielectric Type

Solid

Dielectric Material

FEP ,PFA

Impedance

50Ω

Jacket Material

PFA ,FEP

Shield Construction

Foil + Single Braid

Shield Material

Tinned Copper Spiral

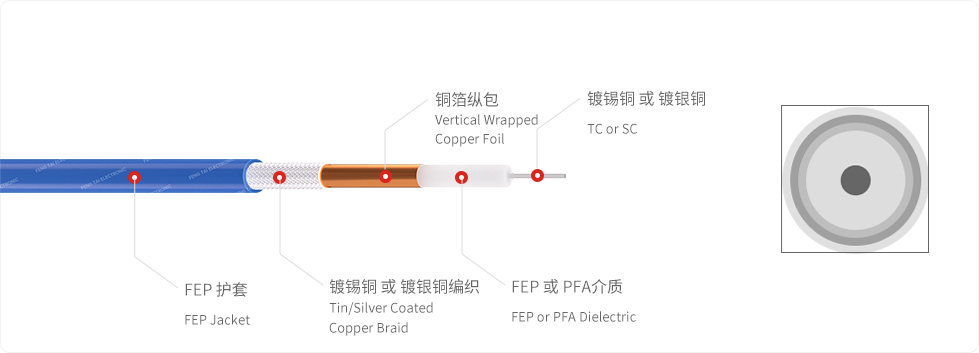

Structure

Specifications

Mic-RF Specifications

Style Spec.

Conductor

Con. Struc

No./mm

Dielectric

Die. Dia

Braid Struc.

Braid

Braid Dia

屏蔽层

单支导体直径

mm*

Jacket Thick.

(Nom) mm

mm±0.05

Mic-RF 0.81

7/0.06

PFA/FEP

0.53

缠绕W

0.64

0.05

0.08

0.81

SC: Silver-Coated Copper; TC: Tin-Coated Copper; *: Braid – Single Conductor Diameter B: Braiding; CF: Copper Foil W: Wrapping
