UL1885（双层）

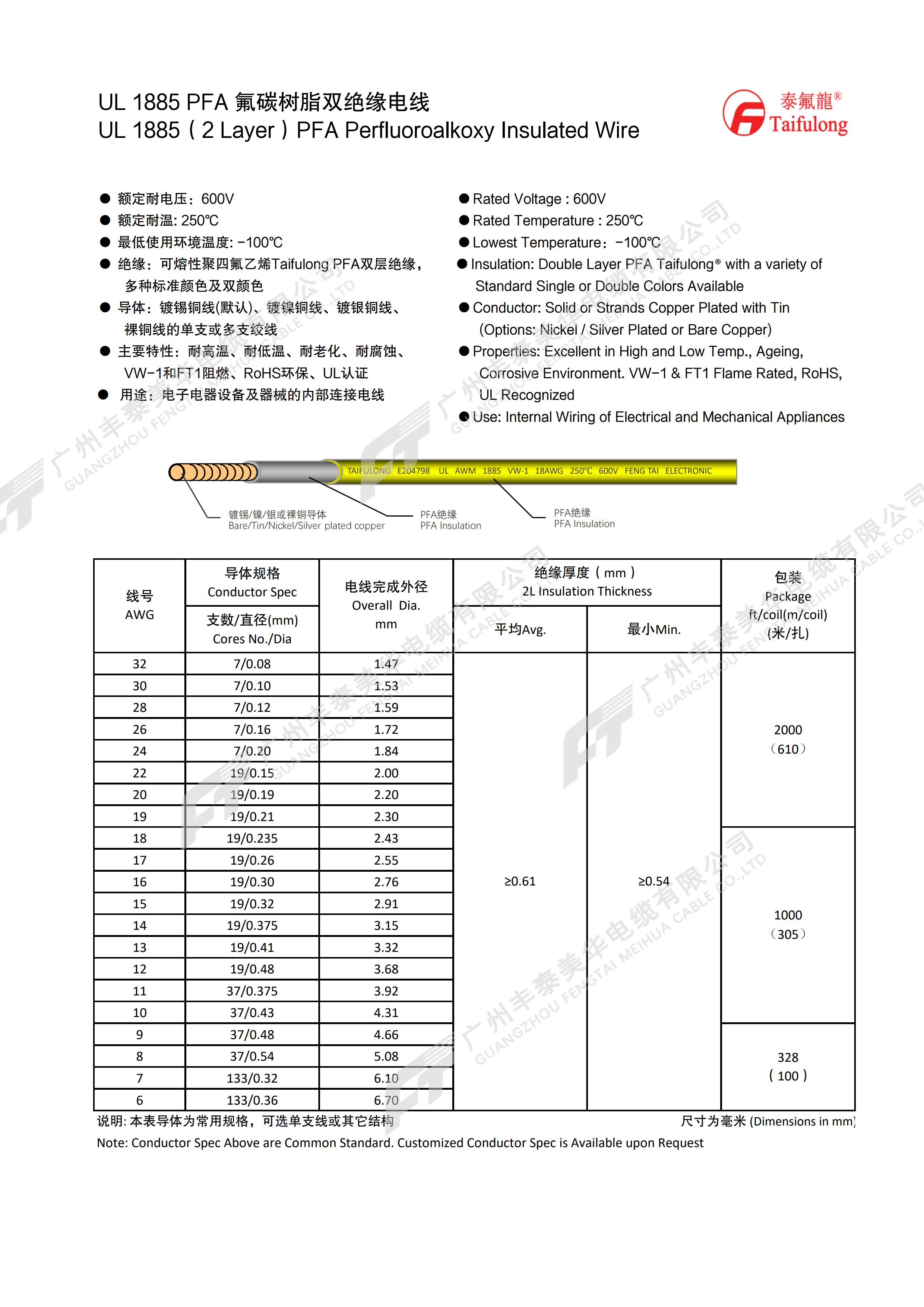

Datasheet

Standards

Insulation

PFA

Rated Temp.

250℃

Rated Voltage

600V

Inul. Thickness

0.61

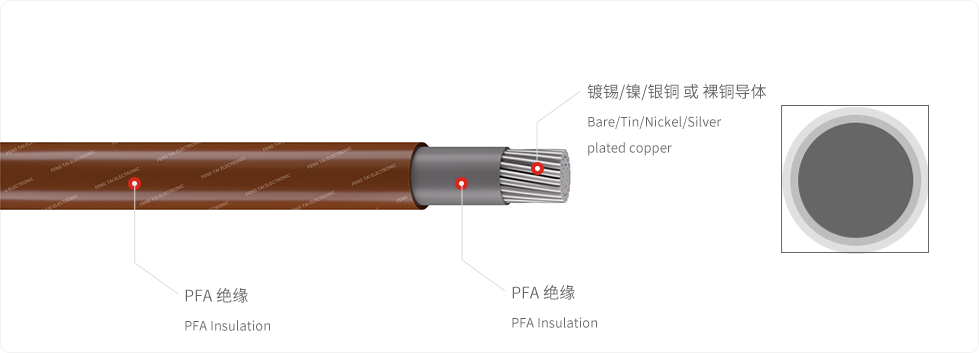

Construction

Double-layer insulation

结构

参数

线号 AWG	导体规格	电线完成外径 mm	绝缘厚度（mm）		包装 (米/扎)
线号 AWG	支数/直径(mm)	电线完成外径 mm	平均Avg.	最小Min.	包装 (米/扎)
32	7/0.08	1.47	≥0.61	≥0.54	2000 （610）
30	7/0.10	1.53
28	7/0.12	1.59
26	7/0.16	1.72
24	7/0.20	1.84
22	19/0.15	2.00
20	19/0.19	2.20
19	19/0.21	2.30
18	19/0.235	2.43			1000 （305）
17	19/0.26	2.55
16	19/0.30	2.76
15	19/0.32	2.91
14	19/0.375	3.15
13	19/0.41	3.32
12	19/0.48	3.68
11	37/0.375	3.92
10	37/0.43	4.31
9	37/0.48	4.66			328 （100）
8	37/0.54	5.08
7	133/0.32	6.10
6	133/0.36	6.70
说明: 本表导体为常用规格，可选单支线或其它结构				尺寸为毫米 (mm)
