PRODUCT

UL10370（双层）

结构

参数

结构

参数

Would you like to learn more UL10370（双层） relevant information?

Click to Inquire

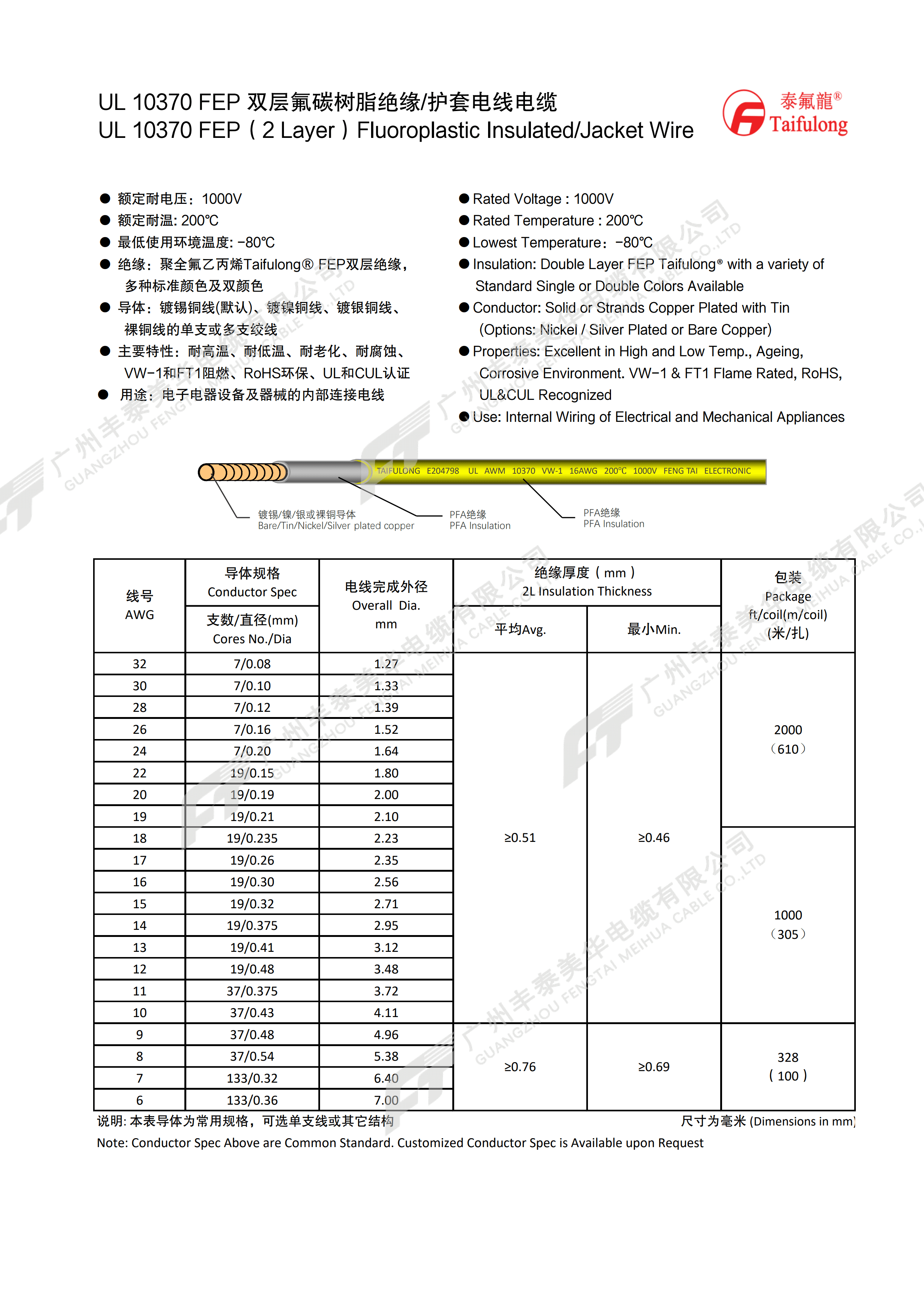

UL10370（双层）

Datasheet

Standards

Insulation

FEP

Rated Temp.

200℃

Rated Voltage

1000V

Inul. Thickness

0.76

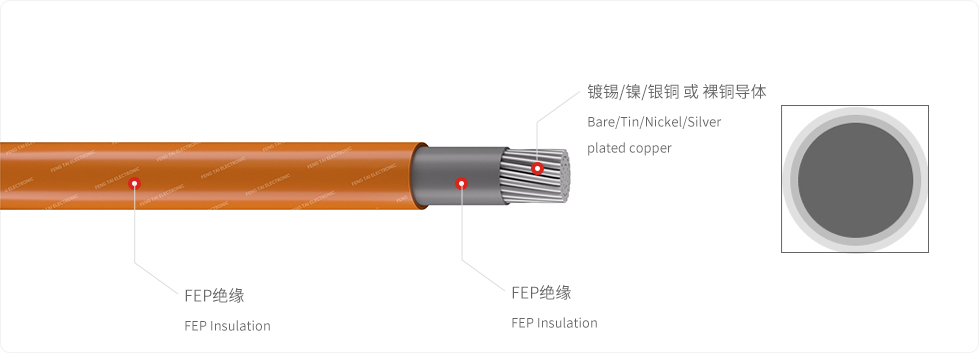

Construction

Double-layer insulation

Jacket

FEP

结构

参数

线号 AWG	导体规格	电线完成外径 mm	绝缘厚度（mm）		包装 (米/扎)
线号 AWG	支数/直径(mm)	电线完成外径 mm	平均Avg.	最小Min.	包装 (米/扎)
32	7/0.08	1.27	≥0.51	≥0.46	2000 （610）
30	7/0.10	1.33
28	7/0.12	1.39
26	7/0.16	1.52
24	7/0.20	1.64
22	19/0.15	1.80
20	19/0.19	2.00
19	19/0.21	2.10
18	19/0.235	2.23			1000 （305）
17	19/0.26	2.35
16	19/0.30	2.56
15	19/0.32	2.71
14	19/0.375	2.95
13	19/0.41	3.12
12	19/0.48	3.48
11	37/0.375	3.72
10	37/0.43	4.11
9	37/0.48	4.96	≥0.76	≥0.69	328 （100）
8	37/0.54	5.38
7	133/0.32	6.40
6	133/0.36	7.00
说明: 本表导体为常用规格，可选单支线或其它结构				尺寸为毫米 (mm)
