UL20242

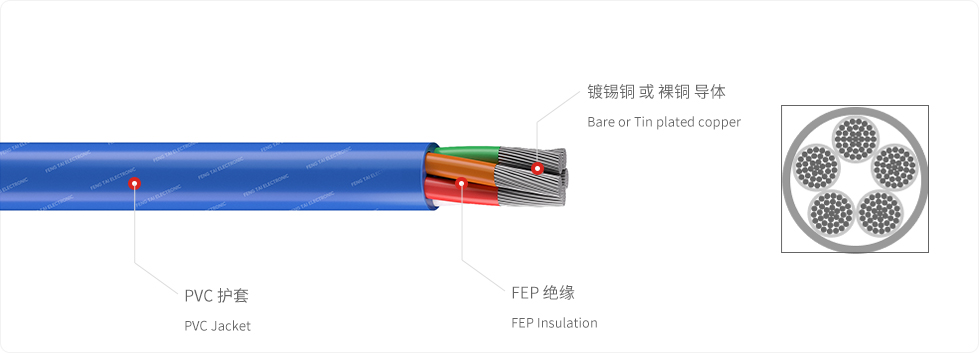

Structure

Specifications

Structure

Specifications

Would you like to learn more UL20242 relevant information?

Click to Inquire

UL20242

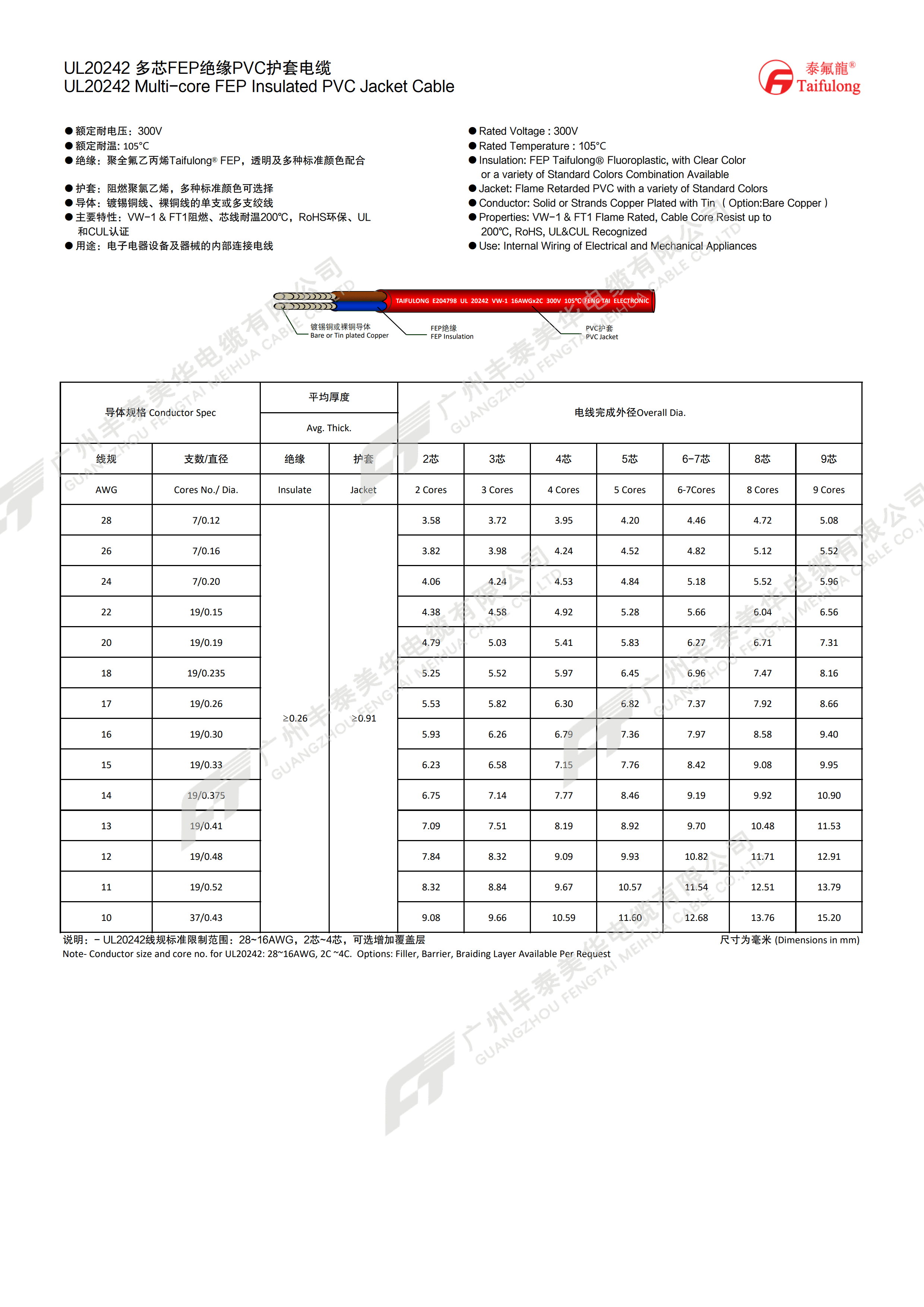

Datasheet

Standards

Insulation

FEP

Rated Temp.

105℃

Rated Voltage

300V

Inul. Thickness

0.26

Construction

Multi-core wire

Jacket

PVC

Structure

Specifications

Conductor Spec.		Avg. Thick.		Overall Dia.
Conductor Spec.		Avg. Thick.		Overall Dia.
AWG	Cores No/ Dia.	Insulate	Jacket	2 Cores	3 Cores	4 Cores	5 Cores	6-7 Cores	8 Cores	9 Cores
28	7/0.12	≥0.26	≥0.91	3.58	3.72	3.95	4.20	4.46	4.72	5.08
26	7/0.16			3.82	3.98	4.24	4.52	4.82	5.12	5.52
24	7/0.20			4.06	4.24	4.53	4.84	5.18	5.52	5.96
22	19/0.15			4.38	4.58	4.92	5.28	5.66	6.04	6.56
20	19/0.19			4.79	5.03	5.41	5.83	6.27	6.71	7.31
18	19/0.235			5.25	5.52	5.97	6.45	6.96	7.47	8.16
17	19/0.26			5.53	5.82	6.30	6.82	7.37	7.92	8.66
16	19/0.30			5.93	6.26	6.79	7.36	7.97	8.58	9.40
15	19/0.33			6.23	6.58	7.15	7.76	8.42	9.08	9.95
14	19/0.375			6.75	7.14	7.77	8.46	9.19	9.92	10.90
13	19/0.41			7.09	7.51	8.19	8.92	9.70	10.48	11.53
12	19/0.48			7.84	8.32	9.09	9.93	10.82	11.71	12.91
11	19/0.52			8.32	8.84	9.67	10.57	11.54	12.51	13.79
10	37/0.43			9.08	9.66	10.59	11.60	12.68	13.76	15.20
(Dimensions in mm)
