UL1868

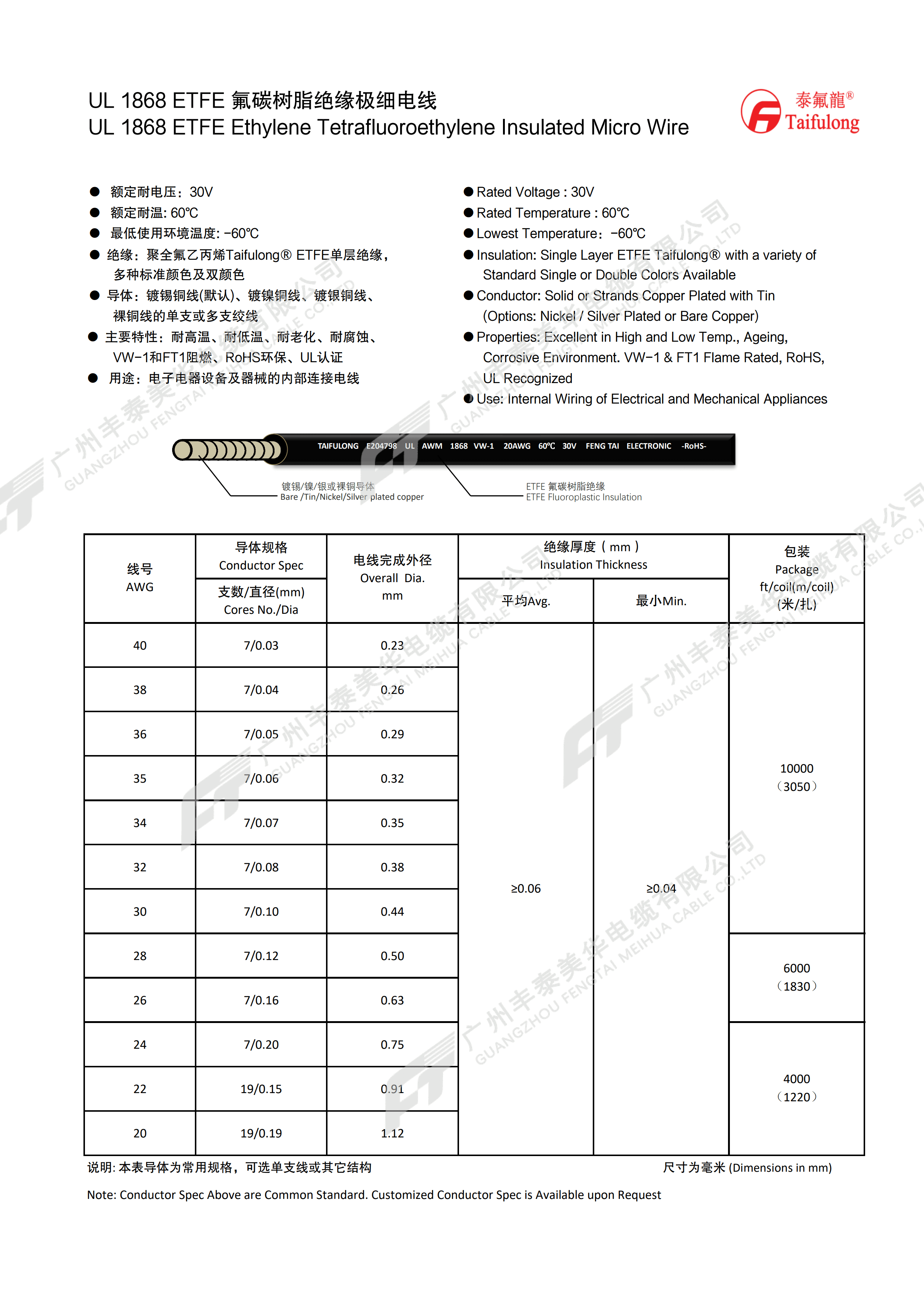

Datasheet

Standards

Insulation

ETFE

Rated Temp.

60℃

Rated Voltage

30V

Inul. Thickness

0.06

Construction

Single-layer insulation

Structure

Specifications

AWG	Conductor Spec.	Overall Dia. mm	Insulation Thickness（mm）		Package ft/coil (m/coil)
AWG	Cores No./Dia (mm	Overall Dia. mm	Avg.	Min.	Package ft/coil (m/coil)
40	7/0.03	0.23	≥0.06	≥0.04	10000 （3050）
38	7/0.04	0.26
36	7/0.05	0.29
35	7/0.06	0.32
34	7/0.07	0.35
32	7/0.08	0.38
30	7/0.10	0.44
28	7/0.12	0.50			6000 （1830）
26	7/0.16	0.63			6000 （1830）
24	7/0.20	0.75			4000 （1220）
22	19/0.15	0.91
20	19/0.19	1.12
Note: Conductor Spec Above are Common Standard. Customized Conductor Spec is Available upon Request				(Dimensions in mm)
