UL3415

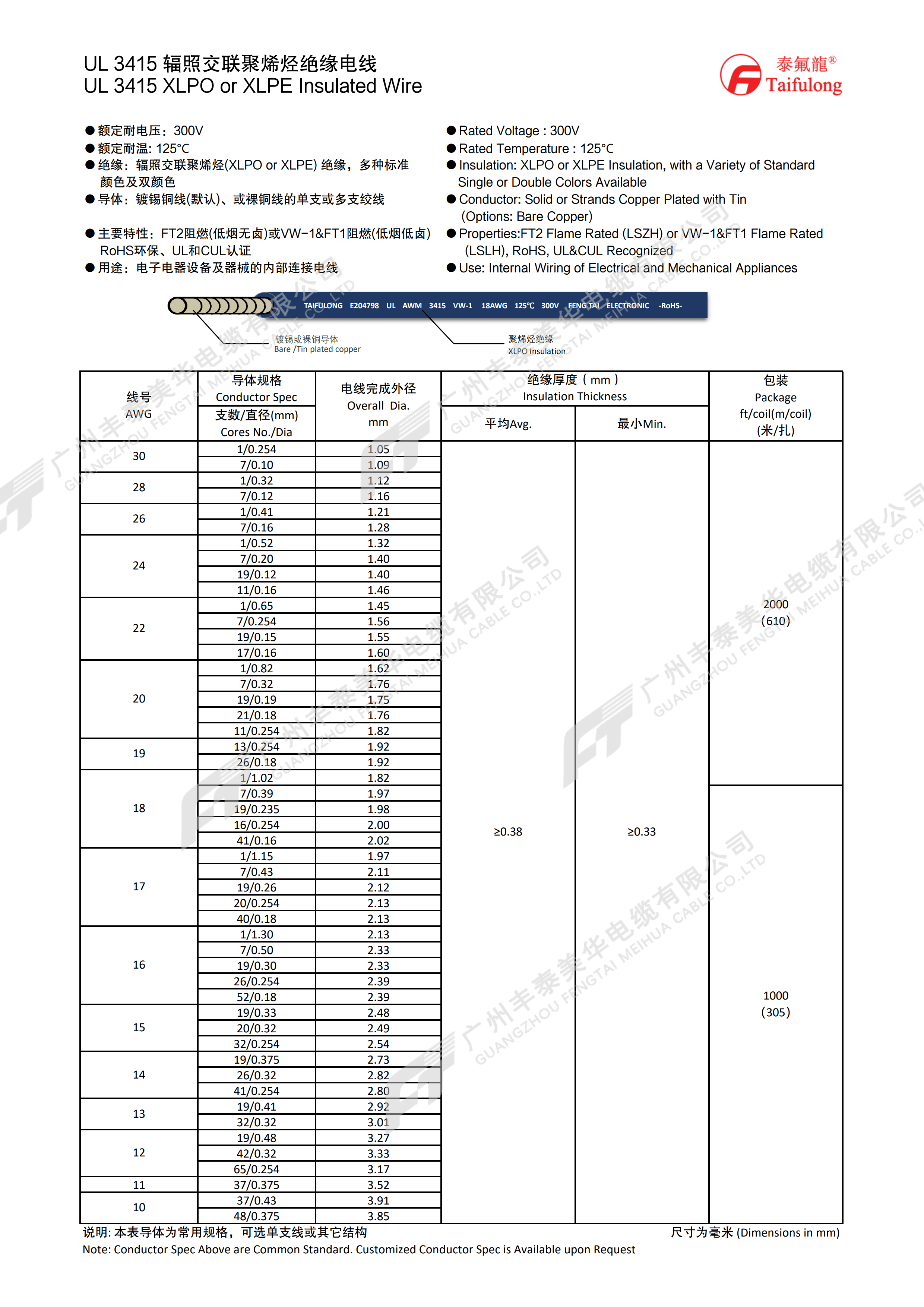

Datasheet

Standards

UL

Insulation

XLPO/XLPE

Rated Temp.

125℃

Rated Voltage

300V

Inul. Thickness

0.38

Construction

Single-layer insulation

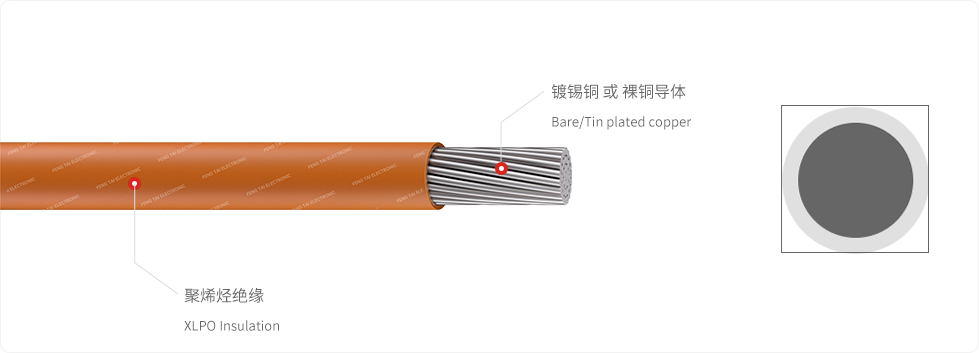

Structure

icon3

Specifications

  • AWGConductor Spec.

    Overall  Dia.

    mm


    Insulation Thickness（mm）

    Package

    ft/coil

    (m/coil)

    Cores No./Dia

    (mm)

    		Avg.Min.
    301/0.2541.05≥0.38≥0.332000
    （610）
    7/0.101.09
    281/0.321.12
    7/0.121.16
    261/0.411.21
    7/0.161.28
    241/0.521.32
    7/0.201.40
    19/0.121.40
    11/0.161.46
    221/0.651.45
    7/0.2541.56
    19/0.151.55
    17/0.161.60
    201/0.821.62
    7/0.321.76
    19/0.191.75
    21/0.181.76
    11/0.2541.82
    1913/0.2541.92
    26/0.181.92
    181/1.021.82
    7/0.391.971000
        （305）
    19/0.2351.98
    16/0.2542.00
    41/0.162.02
    171/1.151.97
    7/0.432.11
    19/0.262.12
    20/0.2542.13
    40/0.182.13
    161/1.302.13
    7/0.502.33
    19/0.302.33
    26/0.2542.39
    52/0.182.39
    1519/0.332.48
    20/0.322.49
    32/0.2542.54
    1419/0.3752.73
    26/0.322.82
    41/0.2542.80
    1319/0.412.92
    32/0.323.01
    1219/0.483.27
    42/0.323.33
    65/0.2543.17
    1137/0.3753.52
    1037/0.433.91
    48/0.3753.85
    Note: Conductor Spec Above are Common Standard. Customized Conductor Spec is Available upon Request(Dimensions in mm)
