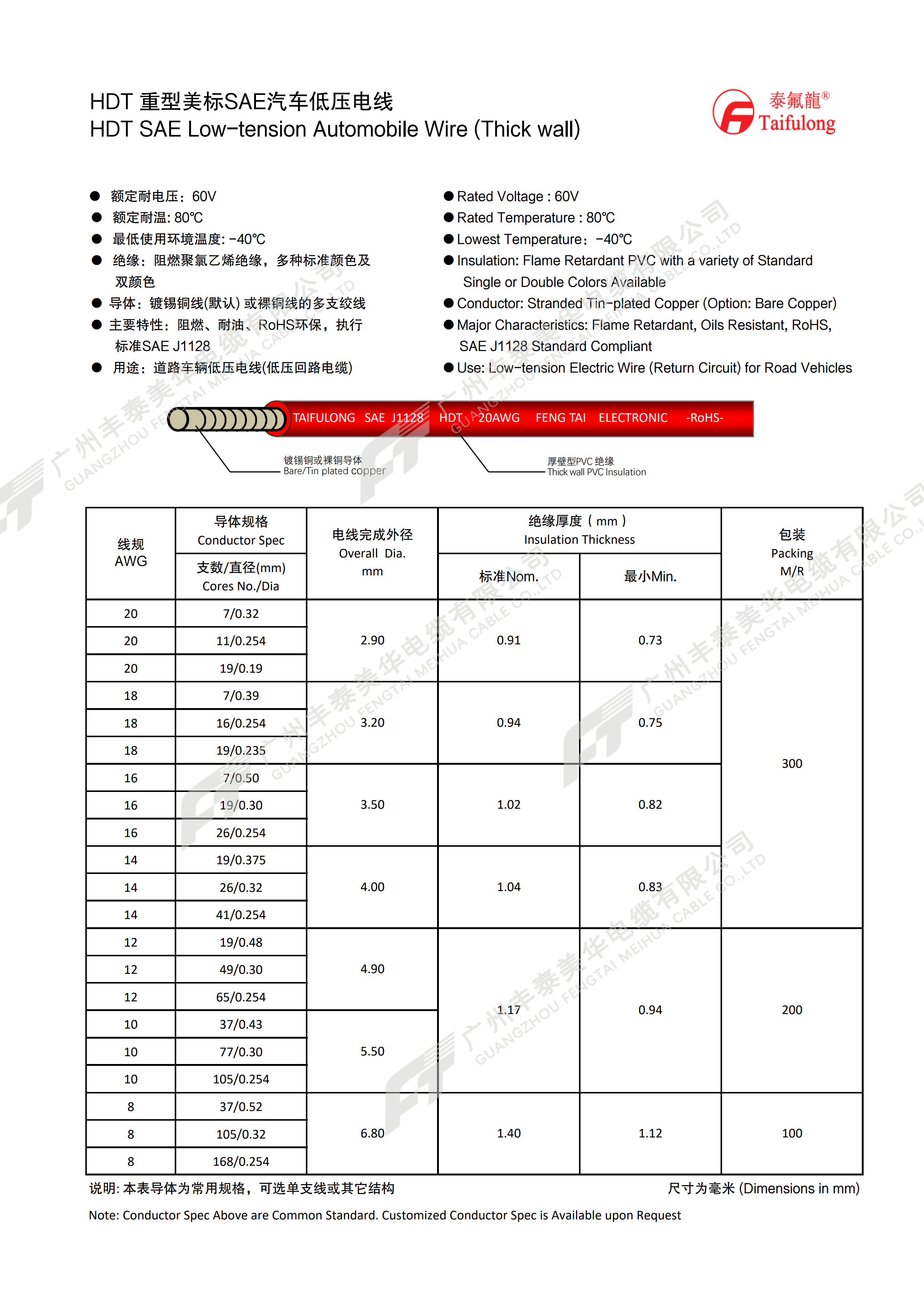

HDT

Datasheet

Standards

Low-Voltage Automobile Wire

Insulation

PVC

Rated Temp.

80℃

Rated Voltage

60V

Inul. Thickness

0.91-1.4

Construction

Single-layer insulation

Structure

Specifications

AWG	Conductor Spcec.	Overall Dia. mm	Insulation Thickness（mm）		Package ft/coil (m/coil)
	Cores No./Dia (mm)		Nom.	Min.
20	7/0.32	2.90	0.91	0.73	300
	11/0.254
	19/0.19
18	7/0.39	3.20	0.94	0.75
	16/0.254
	19/0.235
16	7/0.50	3.50	1.02	0.82
	19/0.30
	26/0.254
14	19/0.375	4.00	1.04	0.83
	26/0.32
	41/0.254
12	19/0.48	4.90	1.17	0.94	200
	49/0.30
	65/0.254
10	37/0.43	5.50
	77/0.30
	105/0.254
8	37/0.52	6.80	1.40	1.12	100
	105/0.32
	168/0.254
Note: Conductor Spec Above are Common Standard. Customized Conductor Spec is Available upon Request				(Dimensions in mm)
